DISPLACER TYPE LEVEL SWITCHES

Displacer Type Level Switches Manufacturers/Suppliers/Dealers in Hyderabad/Telangana/Vishakhapatnam.

CM Engineers is one of the prominent manufactures and exporters of broad array of specific focus on supplying Flow Measuring Instruments, Level Measuring Instruments, Pressure Measuring Instruments and Temperature Measuring Instruments., having completed projects in all india. We deal on various products. like Glass tube rotameter, metal tube rotameters, orifice flow meter, electromagnetic flow meter, mass flow meter, paddle wheel flow meter, tubler level gauge, side mounted level switches, magnetic level indicators, vibrating fork type level switches, display type level switches, pressure transmeter, differential pressure transmeters, manometers, temperature gauges, temperature indicators, temperature controllers, temperature sensors, ph sensors and transmeters, conductivity sensors and transmeters, do sensors and controllers and many more And our policy is Customer Satisfaction and Trust.

All controls have been designed using modular concept standard assemblies may be incorporated in a wide variety of arrangements to meet virtually any control application allowing maximum interchangeability of assemblies. SSIC unique engineering & manufacturing capability handles special process requirements promptly with-out long delays at an economical cost.

OPERATING PRINCIPLE:

These switches have a displacer heavier than the liquid, which is suspended by a spring. When the liquid contacts the displacer, a buoyancy force is produced, which causes the effective weight of the displacer to change, this causes the spring to retract slightly to a new equilibrium position. When the spring retracts the attraction sleeve moves upward into the field of external 'u' magnet (thus overcoming the force of the bias spring & actuating the switching element).

SALIENT FEATURES:

Wide differential.
Low cost & easy maintenance.
Unaffected by liquid agitation.
External adjustment range.
Choice of switches - Micro Switch / Mercury Switch / Reed Switch.

APPLICATIONS:

For wide switching differentials & higher pressure ratings. Used where traditional float operated units cannot work.

STANDARD SPECIFICATIONS:

Type : Displacement Type Level Switch
Working Principle : Attraction
Material of Construction for Displacer & Wetted Parts : AISI 304 SS / AISI 304 SSL / AISI 316 SS / AISI 316 SSL / PVC / Polypropylene / Teflon / Ebonite etc.
Switch Cover : Cast Aluminum, Weatherproof As per IP – 55 / 65 / 66 / 67 AnticorrosivePainted
Process Connection : Flanged 2” to 6” As per ANSI, DIN, JIS, BS, IS Standard or 2” Screwed

Connection
Signalisation : Micro Switch / Mercury Switch / Reed Switch.
Contact Form : 1 NO + 1 NC, 2 NO + 2 NC
Contact Rating : 5A, 230V AC. 5A, 110V AC, 0.25A, 220V DC. 1A, 110V DC, 10A, 240V DC.
Electrical Connection : ¾” ET / ½” NPT / ¾” NPT / 1” NPT, etc.
On – Off Differential : 25 ± 5 mm, 45 ± 5 mm, 60 ± 5 mm or Adjustable.
Repeatability : ± 0.5 % FSR
Accuracy : ± 0.5 % FSR
Set Point : Adjustable

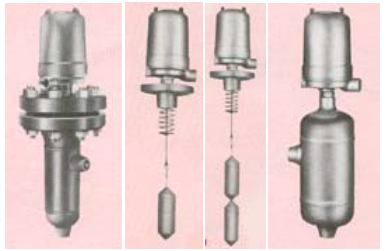

No. of Displacer : Single, Double, Triple & Quadruple
Max. Signalisation Height : 50 mtrs.
Max. Working Pressure : 100 Kg / cm²
Max. Working Temperature : 400°C
Specific Gravity : 0.55 to 1.55

Switch Cover : Cast Aluminum Alloy LM-6 Approved by ERTL (E) for Group IIC Gases As per IS: 2148 & Weatherproof to IP-66 As per IS: 13947.

OTHER SPECIAL FEATURES:

External Chamber - CS, MSRL, SS, PVC, PPE, etc.
Stilling Pipes – GI, CS, SS, HDPE, PVC, etc.
Radiating Fins for High Temperature Application.
Higher Differential
IBR
Special Models on Request.
