PURGE GLASS TUBE ROTAMETERS

Purge Glass Tube Rotameters Manufacturers/Suppliers/Dealers in Telangana/Hyderabad/Vishakhapatnam.

CM Engineers is one of the prominent manufactures and exporters of broad array of specific focus on supplying Flow Measuring Instruments, Level Measuring Instruments, Pressure Measuring Instruments and Temperature Measuring Instruments., having completed projects in all india. We deal on various products. like Glass tube rotameter, metal tube rotameters, orifice flow meter, electromagnetic flow meter, mass flow meter, paddle wheel flow meter, tubler level gauge, side mounted level switches, magnetic level indicators, vibrating fork type level switches, display type level switches, pressure transmeter, differential pressure transmeters, manometers, temperature gauges, temperature indicators, temperature controllers, temperature sensors, ph sensors and transmeters, conductivity sensors and transmeters, do sensors and controllers and many more And our policy is Customer Satisfaction and Trust.

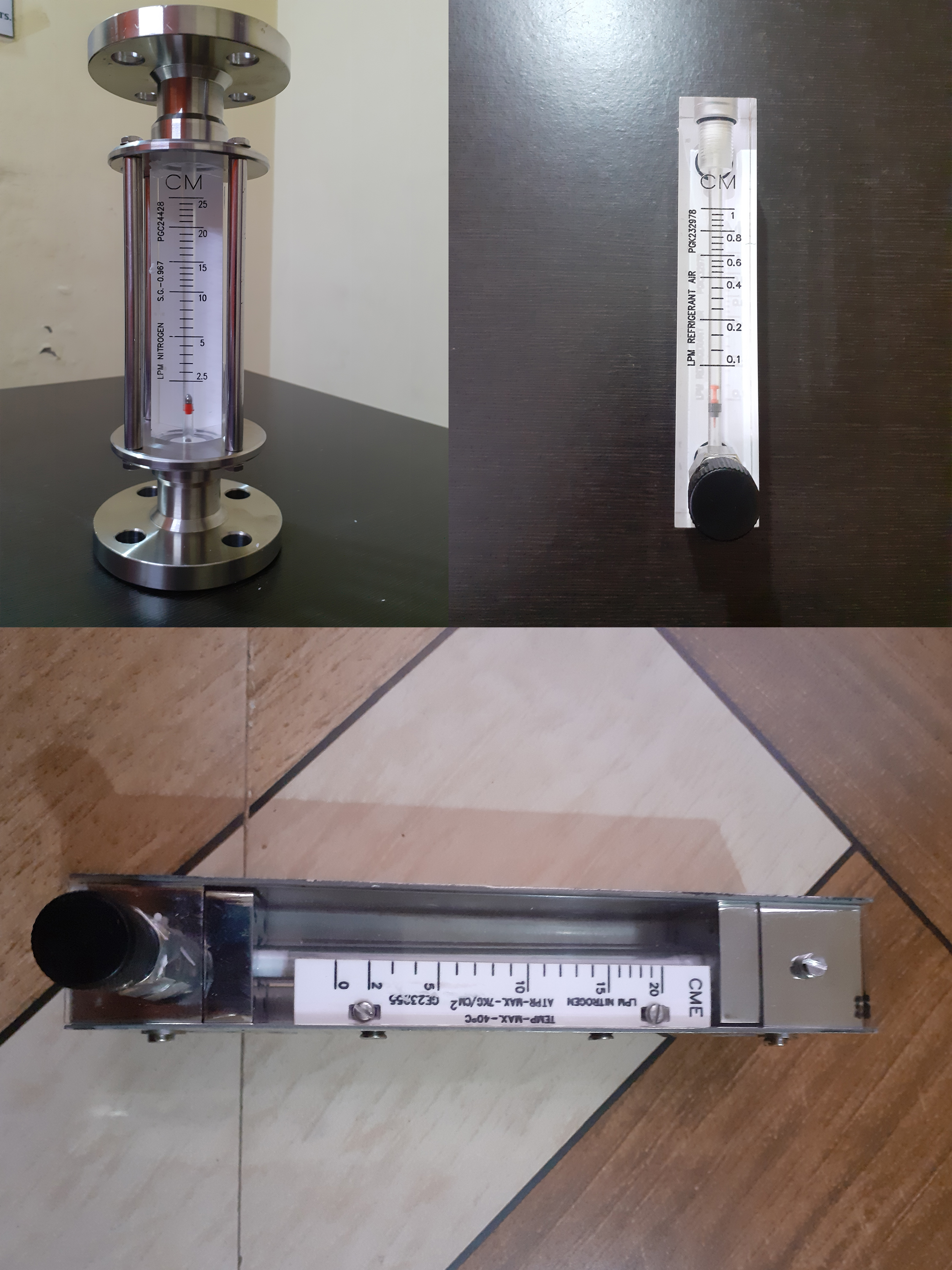

Purge Glass Tube Rotameters

Model CME-PGTR -101
Service/ Media/ Application Liquids / Gases
Instrument Specification
Rang ability 10% to 100 %
Accuracy +/- 3 % FSR OR Better
Pressure Rating Max 10 bar
Temperature Rating Max 100 deg. C
Inlet Back / Bottom
Out let Back / Top
Range As per line size & as per customer requirement.
Connection Standard ¼” NPTF / ¼” BSPM
Overall Length 160 mm +/- 10 mm
Needle Valve SS 304/ SS 316
Material of Construction
Body / Case MOC SS 304 /SS 316 / Aluminum
End Fittings / Wetted parts SS 304 / SS 316
Glass Tube Borosilicate Glass Tube
Float MOC PTFE / SS 316/ SS 316L
Packing Neoprene / Teflon
