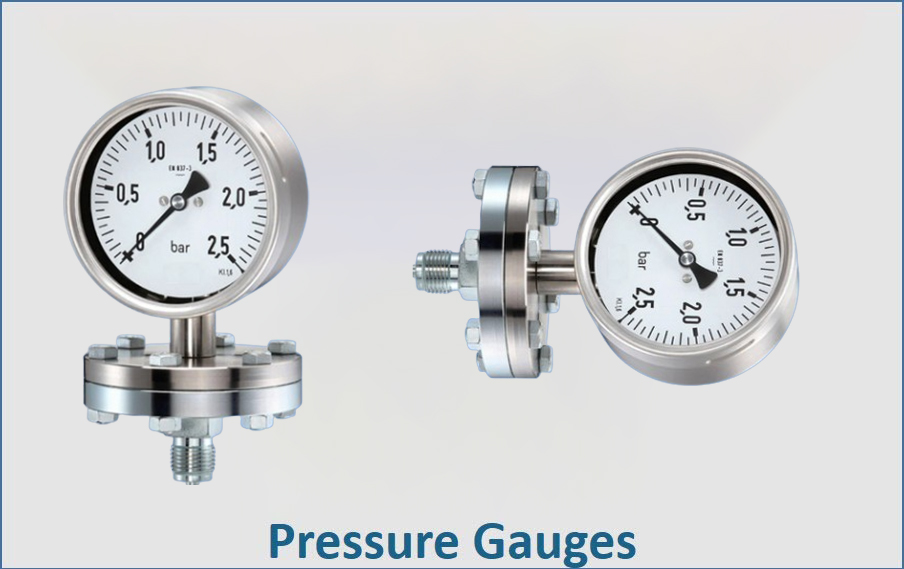

DIAPHRAGM PRESSURE GAUGES
Diaphragm Pressure Gauges Manufacturers/Suppliers/Dealers in Hyderabad/Telangana/Vishakhapatnam.
CM Engineers is one of the prominent manufactures and exporters of broad array of specific focus on supplying Diaphragm, Flow Measuring Instruments, Level Measuring Instruments, Pressure Measuring Instruments and Temperature Measuring Instruments., having completed projects in all india. We deal on various products. like Glass tube rotameter, metal tube rotameters, orifice flow meter, electromagnetic flow meter, mass flow meter, paddle wheel flow meter, tubler level gauge, side mounted level switches, magnetic level indicators, vibrating fork type level switches, display type level switches, pressure transmeter, differential pressure transmeters, manometers, temperature gauges, temperature indicators, temperature controllers, temperature sensors, ph sensors and transmeters, conductivity sensors and transmeters, do sensors and controllers and many more And our policy is Customer Satisfaction and Trust.
Mesuring Range
| Measuring Range (°C) | Recommended Maximum Scale Range (Final Range) (°C) |
|---|---|
|
-1 to 0 bar 0 to 1 bar 0 to 6 bar 0 to 10 bar 0 to 25 bar |
Vacuum Applications Low-Pressure Applications General Process Industry Medium-Pressure Applications High-Pressure Applications |
| Accuracy Class | Limit of Error (± % of Full-Scale) |
| Class 1 | ±1% |
| Class 2 | ±2% |
Specifications
| 1. Type | Diaphragm Pressure Gauge |
|---|---|
| 2. Dial Size | 63 mm, 100 mm, 150 mm |
| 3. Pressure Range | -1 to 0 bar up to 0 to 25 bar |
| 4. Accuracy Class | Class 1.6 or Class 1.0 (as per EN 837-3) |
| 5. Sensing Element | Circular, Corrugated Diaphragm |
| 6. Diaphragm Material | SS 316L, Hastelloy C, Monel (Optional) |
| 7. Wetted Parts | SS 316L, PTFE Coated, or Customized |
| 8. Case Material | SS 304 / SS 316 |
| 9. Window Material | Glass / Acrylic / Polycarbonate |
| 10. Mounting | Bottom, Back, or Panel Mount |
| 11. Connection Type | BSP / NPT / Metric (Threaded) |
| 12. Connection Size | 1/2", 3/4", 1" |
| 13. Enclosure Protection | IP65 / IP67 |
| 14. Filling | Dry or Glycerin-Filled (for dampening) |
| 15. Overpressure Protection | Up to 1.3 times the maximum scale range |
Diaphragm Pressure Gauges

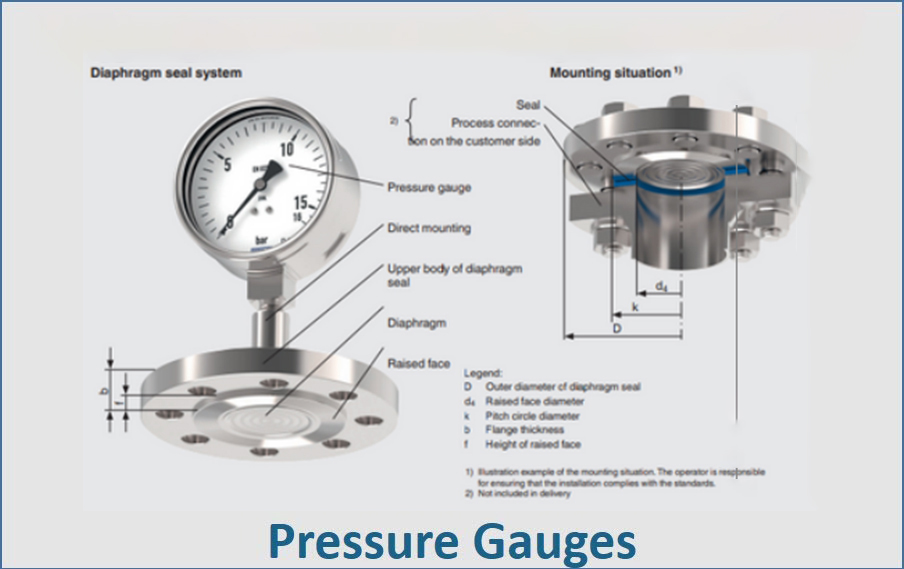

we are leading manufacturers and suppliers of Diaphragm Pressure Gauges in Telangana, Visakhapatnam, Hyderabad, India . DiaphragmPressureGauges are designedfor accurate pressure measurement in challenging industrial applications, particularly in environments with corrosive, viscous, or crystallizing media. T hese gauges feature a rugged diaphragm mechanism that ensures high precision and reliability in demanding conditions.
Special Features
- Corrosion Resistance: Diaphragm and wetted parts made of SS 316L or H astelloy for compatibility with aggressive media.
- High Accuracy: Designed to meet E N 837-3 standards for precision and performance.
- Customizable Options: Various materials, connections, and mounting configurations available.
- Vibration Resistance: Glycerin-filled versions available for damping in high-vibration environments.
- Overpressure P rotection: E nsures safety and durability even in fluctuating pressure conditions
Applications
- Chemical and Petrochemical Industries Food and Beverage Processing
- Pharmaceutical Industry
- Waste water Treatment Plants
- Pulp and Paper Industry
- Power Plants
