PURGE GLASS TUBE ROTAMETERS
Purge Glass Tube Rotameters Manufacturers/Suppliers/Dealers in Telangana/Hyderabad/Vishakhapatnam.
CM Engineers is one of the prominent manufactures and exporters of broad array of specific focus on supplying Flow Measuring Instruments, Level Measuring Instruments, Pressure Measuring Instruments and Temperature Measuring Instruments., having completed projects in all india. We deal on various products. like Glass tube rotameter, metal tube rotameters, orifice flow meter, electromagnetic flow meter, mass flow meter, paddle wheel flow meter, tubler level gauge, side mounted level switches, magnetic level indicators, vibrating fork type level switches, display type level switches, pressure transmeter, differential pressure transmeters, manometers, temperature gauges, temperature indicators, temperature controllers, temperature sensors, ph sensors and transmeters, conductivity sensors and transmeters, do sensors and controllers and many more And our policy is Customer Satisfaction and Trust.

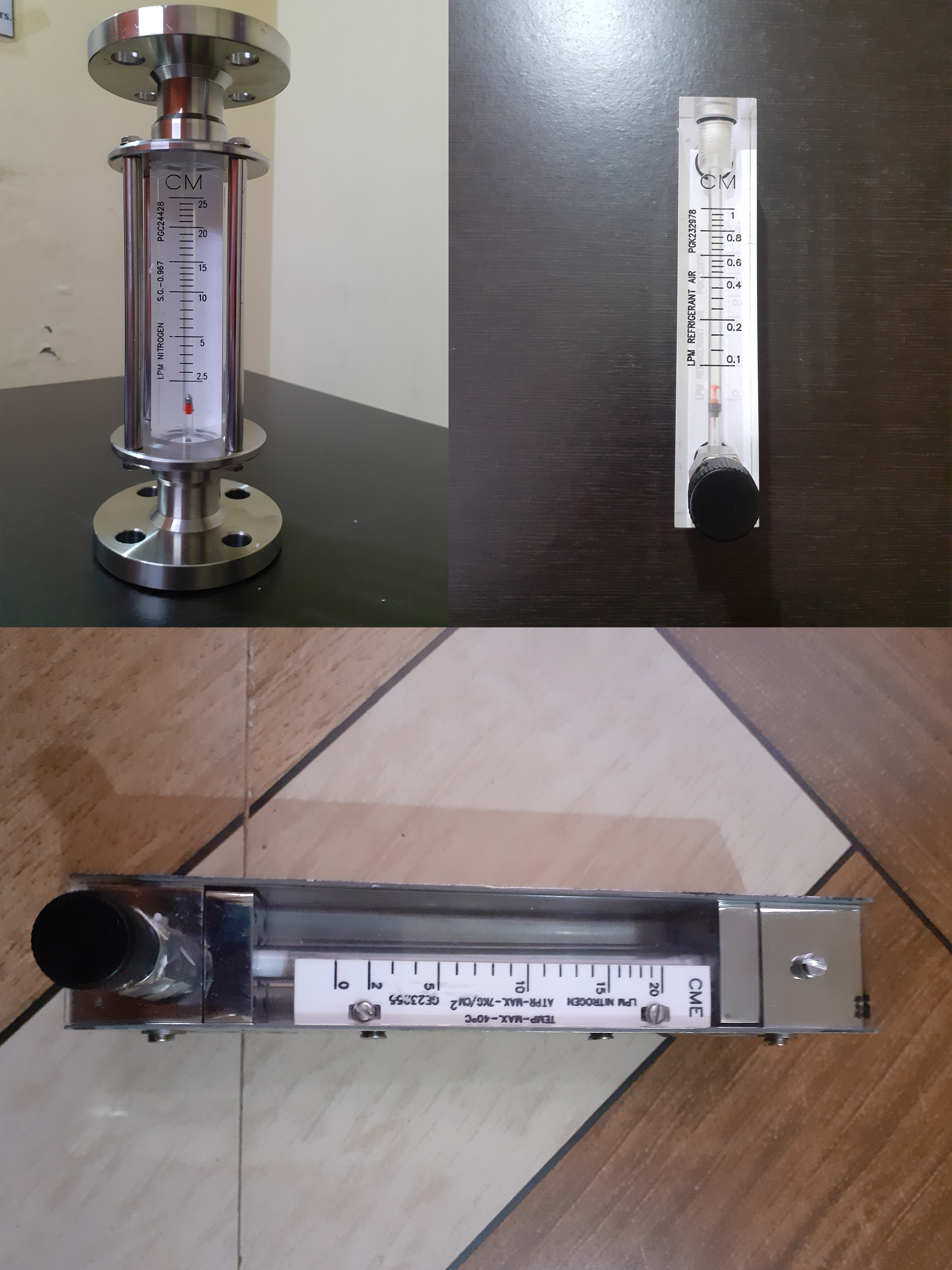

Purge Glass Tube Rotameters
| Model | CME-PGTR -101 |
|---|---|
| Service/ Media/ Application | Liquids / Gases |
| Instrument Specification | |
| Rang ability | 10% to 100 % |
| Accuracy | +/- 3 % FSR OR Better |
| Pressure Rating | Max 10 bar |
| Temperature Rating | Max 100 deg. C |
| Inlet | Back / Bottom |
| Out let | Back / Top |
| Range | As per line size & as per customer requirement. |
| Connection Standard | ¼” NPTF / ¼” BSPM |
| Overall Length | 160 mm +/- 10 mm |
| Needle Valve | SS 304/ SS 316 |
| Material of Construction | |
| Body / Case MOC | SS 304 /SS 316 / Aluminum |
| End Fittings / Wetted parts | SS 304 / SS 316 |
| Glass Tube | Borosilicate Glass Tube |
| Float MOC | PTFE / SS 316/ SS 316L |
| Packing | Neoprene / Teflon |
